Never miss a shot

PowerMax 1260

Contact Us Learn More
  • Power Factor Correction
  • Extremely Powerful
  • Lightweight & Versatile

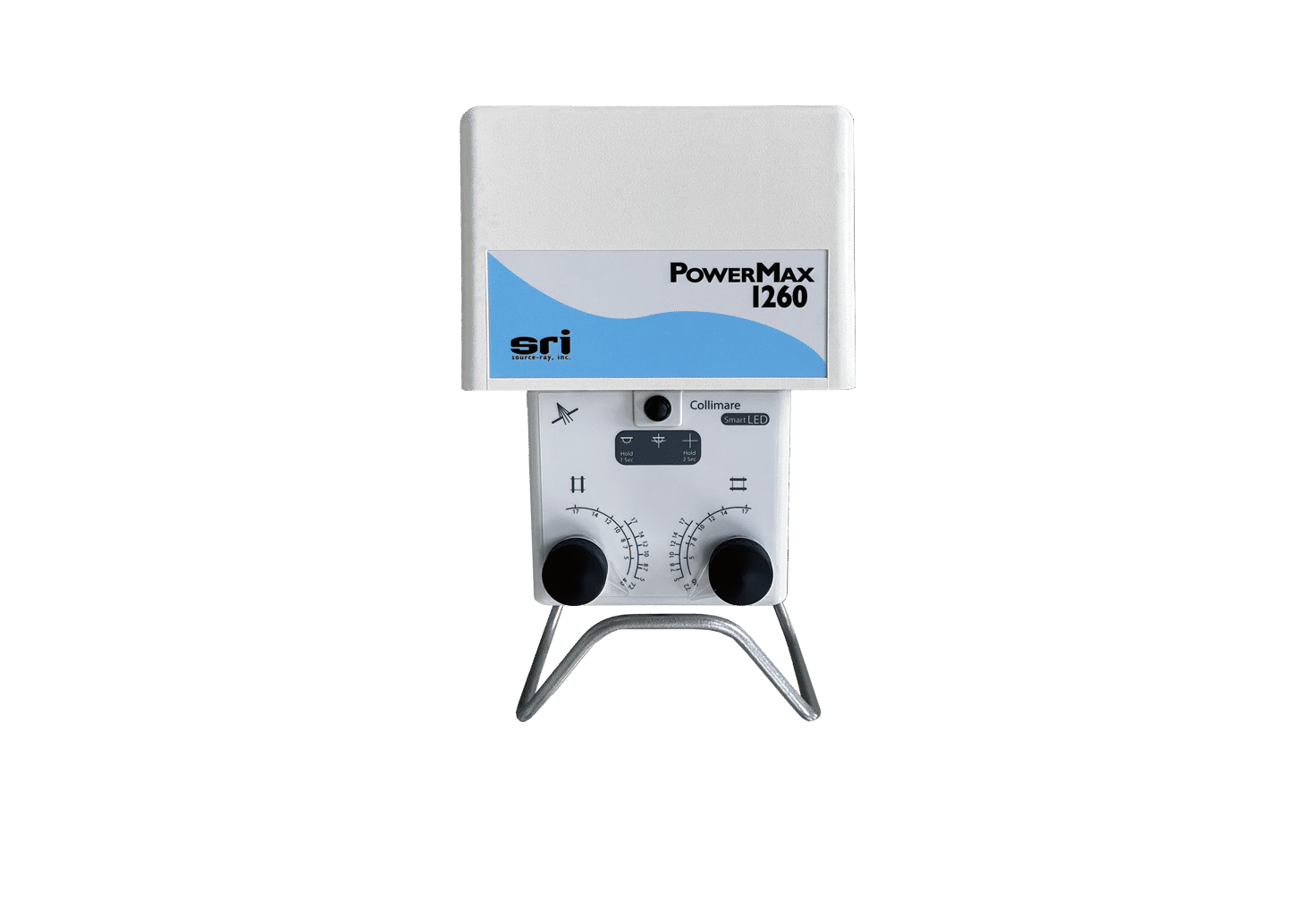

POWERMAX 1260

Provides the maximum power obtainable from a line powered portable with state of the art technology, system reliability and low maintenance, all in a small footprint, lightweight package.

The benefits of our most powerful portable machine

Exposure Time 0.01 - 3.33 sec

Generator Type Microprocessor Controlled

kVp Range 40 -120

Exposure Switch 2 Position

Collimator High output w/ Laser Indicators

MAS Range 0.125 - 200

X-Ray Tube Stationary Anode

Light Weight 110lbs

Specs

Radiographic Applications
  • Designed with agility in mind for portable x-ray applications
Generator Type
  • High frequency Resonant Inverter Microprocessor controlled
KVP Range
  • 40 – 120
MA Range
  • 15 – 60 Selectable
MAS Range
  • 0.125 – 200
Exposure Time
  • 0.01 – 3.33 Seconds
X-Ray Tube
  • Stationary anode
  • 15° Target
  • 1.2 fs 30,000 Heat Unit Storage
Collimator
  • Collimare CP-100-24-C
Exposure Switch
  • 2 Position
  • Prep/X-Ray
Mechanical Stand
  • Welded Aluminum construction

Reach Out

Want To Learn More About The PowerMax 1260?
